线上问题概述

某天下午，客服反馈项目中部分人的功能不能使用，部分人的可以正常使用。经排查，发现有一台服务器接受请求后不处理，dump了堆栈信息和线程的信息后，重启了服务然后一切正常。

排查问题思路

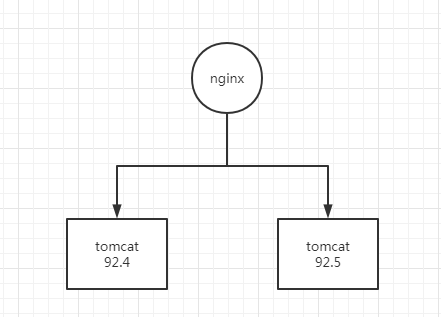

  • 线上系统架构采用的是nginx负载均衡到两个节点的服务器上，此次是其中一台服务器(92.4)出问题

  • 首先查看堆栈信息，没有发现oom报错。然后项目较老使用的是CMS（ConcurrentMarkSweep）垃圾收集器，下面是堆栈信息，可以看出JVM各个区也都正常

    Heap Configuration:
   MinHeapFreeRatio = 40
   MaxHeapFreeRatio = 70
   MaxHeapSize      = 2097152000 (2000.0MB)
   NewSize          = 524288000 (500.0MB)
   MaxNewSize       = 524288000 (500.0MB)
   OldSize          = 5439488 (5.1875MB)
   NewRatio         = 2
   SurvivorRatio    = 1
   PermSize         = 262144000 (250.0MB)
   MaxPermSize      = 262144000 (250.0MB)

Heap Usage:
New Generation (Eden + 1 Survivor Space):
   capacity = 349569024 (333.375MB)
   used     = 125871224 (120.04015350341797MB)
   free     = 223697800 (213.33484649658203MB)
   36.007545107886905% used
Eden Space:
   capacity = 174850048 (166.75MB)
   used     = 16912984 (16.129478454589844MB)
   free     = 157937064 (150.62052154541016MB)
   9.672850647430192% used
From Space:
   capacity = 174718976 (166.625MB)
   used     = 108958240 (103.91067504882812MB)
   free     = 65760736 (62.714324951171875MB)
   62.36199552817892% used
To Space:
   capacity = 174718976 (166.625MB)
   used     = 0 (0.0MB)
   free     = 174718976 (166.625MB)
   0.0% used
concurrent mark-sweep generation:
   capacity = 1572864000 (1500.0MB)
   used     = 604906696 (576.8839797973633MB)
   free     = 967957304 (923.1160202026367MB)
   38.45893198649089% used
Perm Generation:
   capacity = 262144000 (250.0MB)
   used     = 174978296 (166.87230682373047MB)
   free     = 87165704 (83.12769317626953MB)
   66.7489227294922% used

  • 查看线程问题，发现有报错，信息如下，发现有个线程在链接数据库查询的时候报错了，线程显示在WAITTING，所以应该是查询数据库的时候遇到问题了，大概问题定位到是数据库连接出问题，也就能解释的通为什么另一个节点的tomcat是正常的。

    2020-04-29 16:48 cpu_busy: 59
"http-8080-287" daemon prio=10 tid=0x00007fbf5b690800 nid=0x62c1 in Object.wait() [0x00007fbef9b51000]
   java.lang.Thread.State: WAITING (on object monitor)
        at java.lang.Object.wait(Native Method)
        - waiting on <0x00000007947ec8d8> (a com.mchange.v2.resourcepool.BasicResourcePool)
        at com.mchange.v2.resourcepool.BasicResourcePool.awaitAvailable(BasicResourcePool.java:1402)
        at com.mchange.v2.resourcepool.BasicResourcePool.prelimCheckoutResource(BasicResourcePool.java:594)
        - locked <0x00000007947ec8d8> (a com.mchange.v2.resourcepool.BasicResourcePool)
        at com.mchange.v2.resourcepool.BasicResourcePool.checkoutResource(BasicResourcePool.java:514)
        at com.mchange.v2.c3p0.impl.C3P0PooledConnectionPool.checkoutAndMarkConnectionInUse(C3P0PooledConnectionPool.java:707)
        at com.mchange.v2.c3p0.impl.C3P0PooledConnectionPool.checkoutPooledConnection(C3P0PooledConnectionPool.java:634)
        at com.mchange.v2.c3p0.impl.AbstractPoolBackedDataSource.getConnection(AbstractPoolBackedDataSource.java:128)
        at org.springframework.orm.hibernate3.LocalDataSourceConnectionProvider.getConnection(LocalDataSourceConnectionProvider.java:81)
        at org.hibernate.jdbc.ConnectionManager.openConnection(ConnectionManager.java:446)
        at org.hibernate.jdbc.ConnectionManager.getConnection(ConnectionManager.java:167)
        at org.hibernate.jdbc.AbstractBatcher.prepareQueryStatement(AbstractBatcher.java:161)
        at org.hibernate.loader.Loader.prepareQueryStatement(Loader.java:1700)
        at org.hibernate.loader.Loader.doQuery(Loader.java:801)
        at org.hibernate.loader.Loader.doQueryAndInitializeNonLazyCollections(Loader.java:274)
        at org.hibernate.loader.Loader.doList(Loader.java:2542)
        at org.hibernate.loader.Loader.listIgnoreQueryCache(Loader.java:2276)
        at org.hibernate.loader.Loader.list(Loader.java:2271)
        at org.hibernate.loader.custom.CustomLoader.list(CustomLoader.java:316)
        at org.hibernate.impl.SessionImpl.listCustomQuery(SessionImpl.java:1842)
        at org.hibernate.impl.AbstractSessionImpl.list(AbstractSessionImpl.java:165)
        at org.hibernate.impl.SQLQueryImpl.list(SQLQueryImpl.java:157)
        at com.gnetis.roadshow.dao.GnetRsConferenceDAO.queryConferenceTotalNumBySQL(GnetRsConferenceDAO.java:659)
        at com.gnetis.roadshow.conference.confManage.service.impl.ConferenceSearchManage.queryConferenceTotalNumBySQL(ConferenceSearchManage.java:770)
        at com.gnetis.roadshow.conference.confManage.service.impl.ConferenceSearchManage.selecteAcceptanceConference(ConferenceSearchManage.java:474)
        at sun.reflect.GeneratedMethodAccessor386.invoke(Unknown Source)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:616)

    • 首先进入DB的数据库连接数监控页面查看数据库连接是否正常，发现连接数有点大，线上使用了数据库连接池，每台机器最大连接池数为50，所以总的连接数最大是100，但是下面当时故障时间点的连接数是90个，猜想可能是92.4这台机器的连接数满了导致请求不能处理，然后进入mysql，使用show processlist查看运行的线程，只查看其中92.4连接的线程，发现92.4的连接很多而且很多的state是sleep而且time的时间很大，大概有十几天。

      我从中挑了一个，反推或者这个连接的时间，然后用时间去查日志，发现92.4里面当时有个定时任务在执行时报错了。通过代码和业务分析后发现，是由于疫情期间参会人数暴增，代码中参会人的属性是short类型，导致参数人强制类型转换后变成负数，导致定时任务报错。hibernate中旧版本有bug报错后没有释放连接，导致连接池被耗完，后面的请求获取不到连接一直在等待。

经验总结

  • 首先就是做好日志中错误信息的监控，对所有报错都及时处理
  • 增加数据库连接池的最大连接数，增加单台机器的数据库连接监控并及时告警
